For our TF1100-CH handheld flow meter,the installation as followed.
When using V or W method to install transducers, install the two transducers on the same side of pipeline.
1. Connect the chains and spring.
2. Lay on enough couplant on the transducer.
3. Connect the transducers cable.
4. Enter the application parameters in transmitter to get the XDCR spacing in menu 25.
5. Install and fix the transducers on the ruler using knurled screws.( note if the wrong space is applied, the measurement fails or the measurement will have wrong values)
6. Fix the transducers using the chains and springs.
7. Approach the transducers to the pipe by adjusting the knurled screw until the transducer is pressed slightly onto the pipe.
Installation Steps for Z and N Transducer Mounting Method
When using Z or N method to install transducers, install the two transducers respectively on the opposite sides of pipeline. Installation steps are same as for W and V transducer mounting method without ruler.

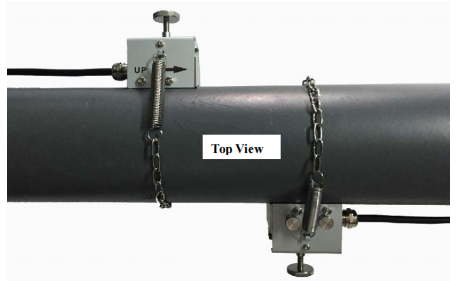

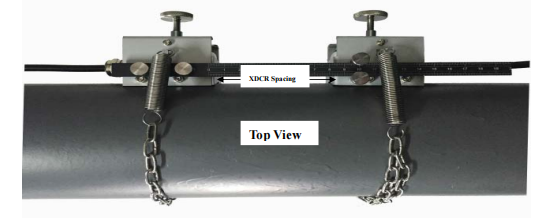

When finishing the installation, it will show as follow:
Notes:
1. Equably spread couplant on measuring side of transducer, and then put transducer into bracket from broadside, make sure pipeline and transducer have good coupling.
2. Do not over tighten to prevent couplant extrusion.
3. Ensure that the two brackets are on the same axial surface.
