V-Mount is the STD installation method, it is convenient and accurate, reflective type (transducers mouthed on one side of the pipe) of installation used primarily on pipe size in the (50mm~400mm) internal diameter range attention transducer designed parallel on the centre line of installing the pipeline.
The spacing value shown on menu refers to the distance of inner spacing between the two transducers. The actual transducers spacing should be as close as possible to the spacing value. The transducer spacing is from the end of one transducer to another sensor.
The transducer mounting spacing is very important for Transit-time meters, and users need mount transducers exactly according to the spacing distance value displays after users input proper parameter settings. Pls note the distance is only for reference, and just keep it within 97–103% value range.

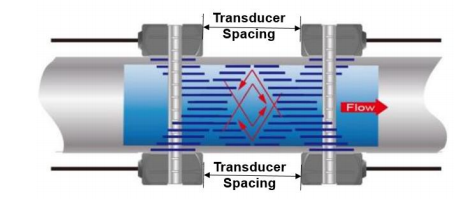

As the above figure shows, the normal transducer spacing refers to the distance between the ends of the two transducers (one pair). And this spacing should be according to the value Menu tells you. Note that this method suits for normal standard A and B transducers.
