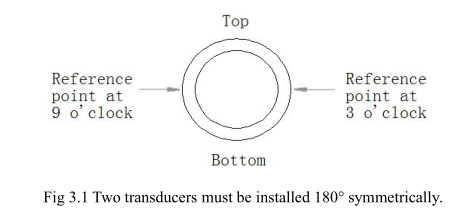

Locate the reference mounting positions of 3 and 9 o’clock (180° symmetrically) as shown in Fig 3.1.
Two transducers called A and B transducer, A is transmitting transducer and B is receiving transducer, they must be installed 180° symmetrically in order to have a more accurate measuring, shown as Fig 3.1.
All the transducers have a Serial Number corresponding to transmitter Serial Numbe
