(a) 6.2.1 CLAMP-ON TEMPERATURE SENSOR
When determining the installation position of temperature sensor, we should pay attention to the pipeline surface. Pipeline surface must be clean before installing temperature sensor, then use belts to fix temperature sensor.
(b) 6.2.2 INSERTION TEMPERATURE SENSOR
The insertion temperature sensor is directly contact with measured fluid, so its accuracy is higher. We have two methods to install insertion temperature sensor.
1. Installing by ball valve
For wieldable pipe material, weld ball valve on pipe directly. For non-wieldable pipe material, first welding a hoop (Usually material is carbon steel) on pipe, then welding ball valve on hoop. After welding ball valve, drill a suitable hole. Drill into the pipe wall in accordance with the instructions supplied with the drilling machine, at first, please select the slow tap position to drill hole, then select fast tap position.
After drilling a hole, plug in the insertion temperature sensor, adjust the insertion depth, then fix it.

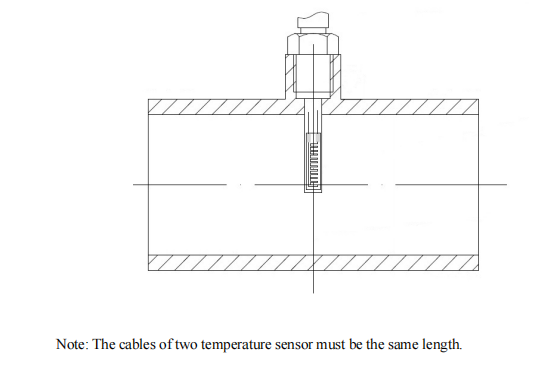

2. Installing on pipe directly
Drill a suitable hole on pipe directly, plug in the insertion temperature sensor, adjust the insertion depth, and then fix it.
