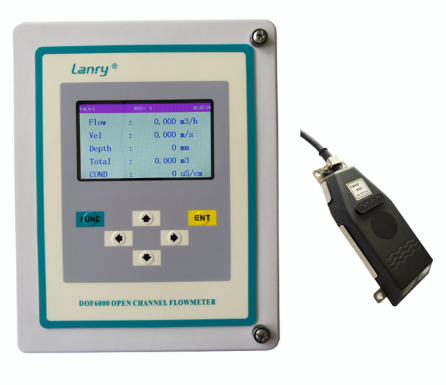

It also named area velocity flow meter or doppler flow meter. The Lanry area velocity doppler flowmeter uses a submersible ultrasonic doppler sensor to measure both the level and velocity of water flow to calculate flow in an open channel or pipe, the pipe could be full water or not.
Lanry Area velocity sensor is mounted either inside a pipe or at the bottom of open channel with the function of resist fouling, corrosion, and abrasion.
Lanry DOF6000 open channel flow meter can measure all kinds of liquids, including running water, river water, stream water, industrial wastewater, irrigation water,etc. The Lanry open channel flow sensor can measure the flow velocity from 0.02mm/s to 12m/s ( forward and reverse flow ).
Lanry submerged velocity & level sensor will measure flow in partially full pipes.
The min. pipe diameter for Lanry Doppler area velocity Flow Meter is 150mm, the max. pipe diameter for it is 6000mm.
For pipe application, you just need to choose round pipe and input the inner diameter of pipe into our DOF6000 calculator;
For channel application, there are 20 coodinate pints for describing your channel shape. The channel width need to be more than 200mm.
After that, Lanry doppler open channel flow meter will automatically computes and display flow volume.
The Flow Meter will store time and date-stamped flow values . Daily data reports are automatically created where total, minimum, maximum, and average flow rates are displayed on the LCD display. Datalogger function can be chosen ( SD card ).
Lanry Area Velocity Flow Meter is suitable for different open channels measurement applications like influent flow monitoring, effluent flow monitoring, wastewater, stormwater, river and stream flow monitoring, industrial wastewater applications, and irrigation water flow measurement.
