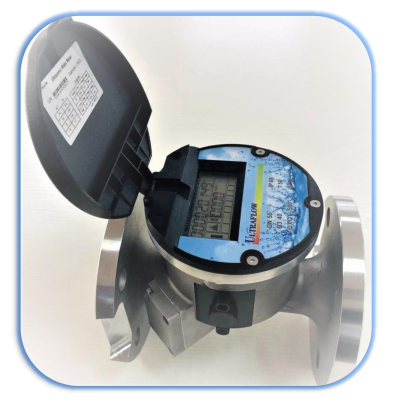

Introduction for Lanry ultrawater SS304 ultrasonic water meter

Ultrawater series stainless steel ultrasonic water meter adopts dynamic zero point and time calibration before each measurement, which makes flow measurement more stable and accurate. Ultra-low power design, service life of up to 15 years; the whole machine does not have any moving parts, the casing is made of 304 stainless steel precision casting, higher strength, protection grade with IP68; with triple output interfaces, This guide will provides you a better understanding and usage of the Ultrawater ultrasonic water meters.

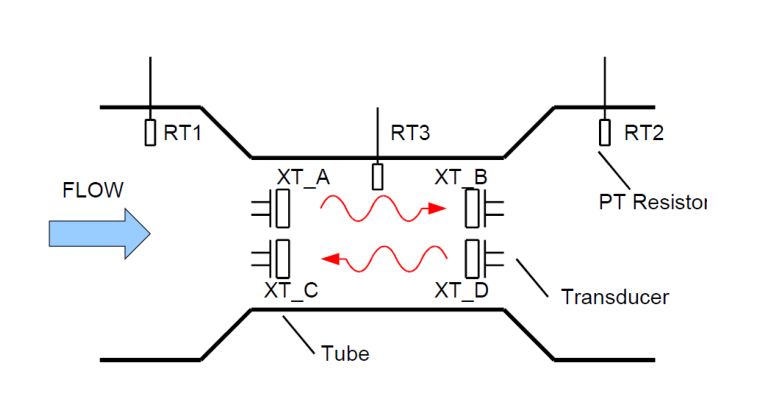

A transit time ultrasonic flow meter uses ultrasonic transducers that can both send and receive signal. The ultrasonic signal is transmitted between the transducers through the fluid that pass through the flow meter. The transducers are organized so that the sound velocity will interact with the flow velocity. The sound propagation time between the transducers is measured in both directions. If there is no fluid motion the two times are ideally equal but if there is fluid velocity present the
interaction with the sound velocity will cause one time, the downstream one, to decrease and the other time, the upstream one, to increase.
These two times are used to calculate the flow velocity.

The Ultrawater ultrasonic flow meter is a battery-powered, precision flow meter designed for linear, bidirectional flow measurement of water.
