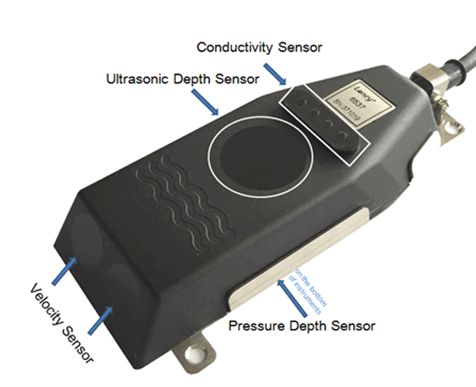

Only QSD6537 sensor is a submerged doppler sensor to continuously measure flow rate , depth, conductivity in open channels, partially filled pipes, rivers, streams, culverts, canals and others . It is designed for sewage, stormwater and stream flow applications.

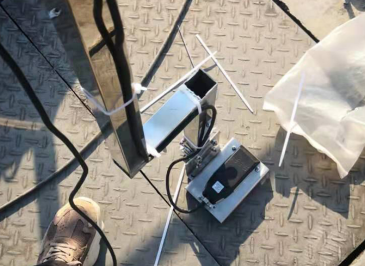

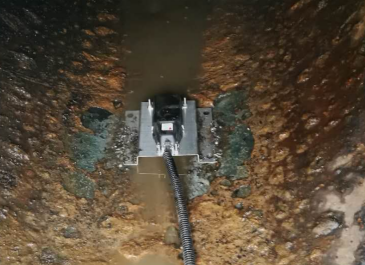

QSD6537 Area-Velocity Flow Meter measures both Level and Velocity to calculate flow in open channels or pipes, and DOF6000 calculator will automatically calculate and display water flow volume. Area velocity open channel flow sensor is usually mounted inside the pipe or on the bottom of open channel, It can be fixed by brackets, hoops, rods and other accessories or mounting tools as pictures shown.
Our area velocity ultrasonic sensor has many advantages as below .
1. Easy to install ;
2. Can measure flow velocity, level, conductivity and temperature of fluids ;
3. Can measure unregular pipes or channels ( 20 coodinate points to describe any shape of pipelines or open drains ) ;
4. No need any flumes or weirs ;
5. Can measure 10m liquid level by ultrasonic and pressure sensor
6. SDI-12 or RS485 Modbus RTU are optional for you ;
