Energy calculation for clamp on ultrasonic flow meter with heat function

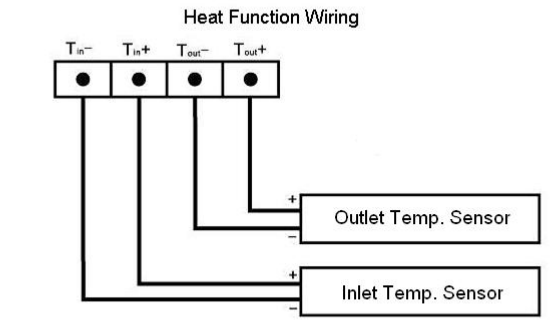

Analog input can be connected to four 4-20mA temperature signal from outside. When calculating energy, T1 connects to inlet sensor and T2 to outlet sensor.

We have two methods to calculate energy.

Method 1:

Energy=Flow×Temp. Difference×heat capacity (Where:Temp. Difference refers to the temperature difference between Tin and Tout; heat capacity is in Menu 86, commonly it is -1.16309KWh/m3℃)

Method 2:

Energy = Flow×(thermal enthalpy at T1 temp.- thermal enthalpy at T2 temp.)

This thermal enthalpy is automatically calculated by heat meter according to international standard.
