Mag-11 Series Electromagnetic Flowmeter is the flow meter with the function of cold,heat measurement,usually called electromagnetic energy meter or electromagnetic heat meter. It is applied in heat exchange loop, measuring the energy which is absorbed or converted by the heat carrier liquid. Energy meter displays the heat with the legal unit of measurement(kWh), not only measuring the heating capacity of heating system,but also measuring the heat absorption capacity of cooling system.

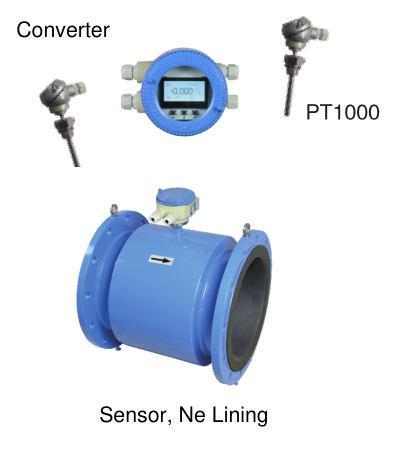

Mag-11 Series Electromagnetic Flow meter consists of flow measurement unit(flow sensor), energy calculation unit (converter) and two precise paired temperature sensors(PT1000).
Features
No moving part and no pressure loss
High accuracy of ±0.5% value of reading
Suitable for water and water/Glycol solutions, heat capacity can be programmed
Measure forward and reverse direction flows.
4-20mA, Pulse, RS485,Bluetooth and BACnet output can be optional.
DN10-DN300 pipes are available.
Paired PT1000 temperature sensors
Built-in interval data logger.
Specification
Converters
|
Display |
4-line English LCD display,display the data of instantaneous flow,cumulative flow, heat (cold), the temperature of inlet and outlet water. |
|
Current Output |
4-20mA (can set flow or energy) |
|
Pulse Output |
Can choose full frequency or pulse equivalent output, the maximum frequency value of output is 5kHz. |
|
Communication |
RS485(MODBUS or BACNET) |
|
Power Supply |
220VAC, 24VDC, 100-240VAC |
|
Temperature |
-20℃~60℃ |
|
Humidity |
5%-95% |
|
Protection Level |
IP65 (Sensor can be IP67, IP68) |
|
Structure |
Split Type |
|
Dimension |
Reference dimension of MAG-11 Converter |
Sensor types
Flange type sensor
Holder-type sensor
Insertion type sensor
Thread-type sensor
Clamped type sensor

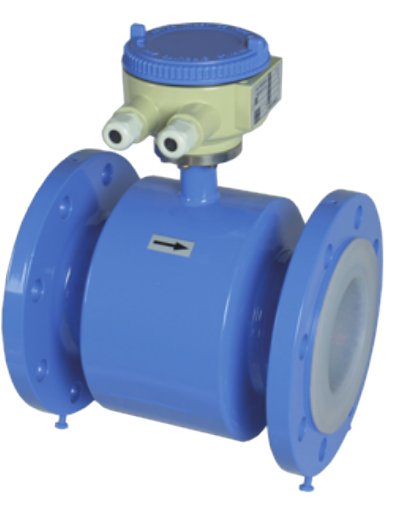

1. Flange type sensor
Flange sensor use the way of connecting the flange with pipe, has various types of electrode material and lining material.The sensor and converter can combined into the integrated or split type electromagnetic flow meter.
|
Application |
All conductive liquid including water,beverage,various of corrosive media and liquid-solid two-phase fluid(mud,paper pulp). |
|
Diameter |
DN3-DN2000 |
|
Pressure |
0.6-4.0Mpa |
|
Electrode Material |
SS316L, Hc, Hb, Ti, Ta, W, Pt |
|
Lining Material |
Ne, PTFE, PU, FEP, PFA |
|
Temperature |
-40℃~180℃ |
|
Shell Material |
Carbon Steel (Stainless Steel can be customized) |
|
Protection Level |
IP65, IP67, IP68 |
|
Connection |
GB9119 (Can connect with HG20593-2009 flange directly),JIS,ANSI or customized. |

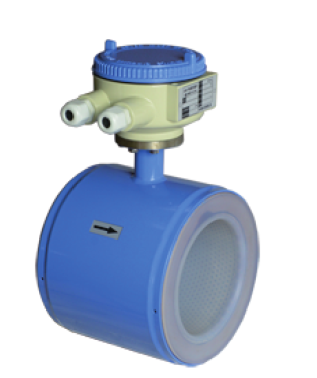

2. Holder-type sensor
Holder-type sensor use the flangeless design,it has the advantage of integrated structure, light weight and easy to remove.
Short measuring pipe is beneficial to remove the dirt on pipe.
|
Diameter |
DN25-DN300 (FEP, PFA) , DN50-DN300 ( Ne, PTFE, PU ) |
|
Electrode Material |
SS316L, Hc, Hb, Ti, Ta, W, Pt |
|
Lining Material |
Ne, PTFE, PU, FEP, PFA |
|
Shell Material |
Carbon Steel (Stainless Steel can be customized) |
|
Temperature |
-40℃~180℃ |
|
Protection Level |
IP65, IP67, IP68 |
|
Protection Level |
Holder Type; Applied in corresponding pressure of the flange with all kinds of standard ( such as GB,HG ). |
|
Pressure |
0.6~4.0Mpa |

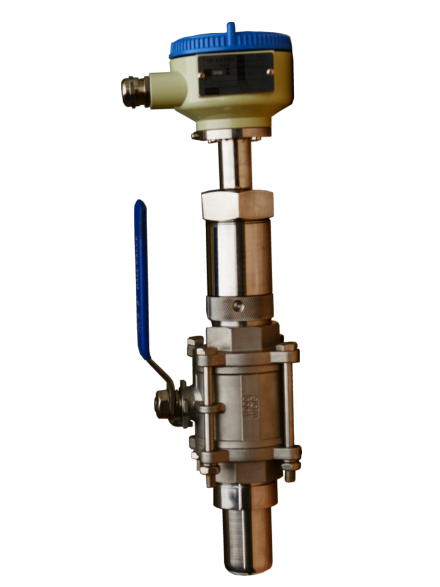

3. Insertion type sensor
Insertion type sensor and various converters combined into the insertion electromagnetic flow-meter, commonly used in measuring the flow of large diameter, In particular, after using the technology of hot-tapping and installation with pressure, insertion magnetic flow-meter can be installed in case of continuous flow, and also can be installed on cast iron pipes and cement pipes.
Insertion electromagnetic flow-meter is applied to measure the flow of medium-sized pipes in water and petrochemical industries.
|
Diameter |
≤DN6000 |
|
Electrode Material |
SS316L |
|
Lining Material |
PTFE |
|
Temperature |
0~12℃ |
|
Protection Level |
IP65, IP67, IP68 |
|
Pressure |
1.6Mpa |
|
Accuracy |
1.5 5 |
4. Thread-type sensor
Thread-type sensor breaks through the conventional design of electromagnetic flow meter, it makes up the fatal flaw of some flow meters for small flow measurement, it has the advantage of light weight appearance, easy to install, wide measurement range and hard to clogged, etc.
|
Diameter |
DN3-40 |
|
Electrode Material |
SS 316L, Hastelloy Alloy C |
|
Lining Material |
FEP, PFA |
|
Temperature |
0~180℃ |
|
Protection Level |
IP65, IP67, IP68 |
|
Connection |
Thread-type |
|
Pressure |
1.6Mpa |

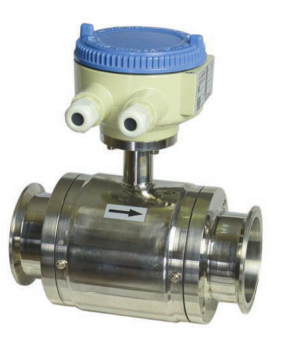

5. Clamped type sensor
Clamped type sensor with full stainless steel shell and the lining material meets the health requirements, it is special designed for the industries of food,beverage and medicine.The technological process often needs regular cleaning and disinfection.In order to remove conveniently, the sensor generally in the form of clamp fittings connect with the measured pipe.
|
Diameter |
DN15-DN125 |
|
Electrode Material |
SS 316L |
|
Lining Material |
PTFE, FEP, PFA |
|
Shell Material |
SS 304 (or 316, 316L) |
|
Short Liquid Pipe |
Material: 316L; Clamp Standard: DIN32676 or ISO2852 |
|
Temperature |
0~180℃ |
|
Protection Level |
IP65, IP67, IP68 |
|
Connection |
Clamped type |
|
Pressure |
1.0Mpa |
